NRS Electric Reach Truck

SKU: ERT-NRS

AC-powered reach truck for narrow aisles, lifting to 216.5" with reach and side-shift.

4 models available

Capacity range: 3,307 lbs (1.5 ton)

Ships direct from factory via Rhenus Logistics. Typical transit: 4–6 weeks to North American facilities.

Product Description

The NRS electric reach truck delivers true reach capability in narrow aisles, extending forks forward to place and retrieve loads deep in selective racking. The compact AC-powered chassis operates in aisles as narrow as 100 inches while lifting loads to 216.5 inches. Advanced tilt and side-shift functions provide precision load placement at every level.

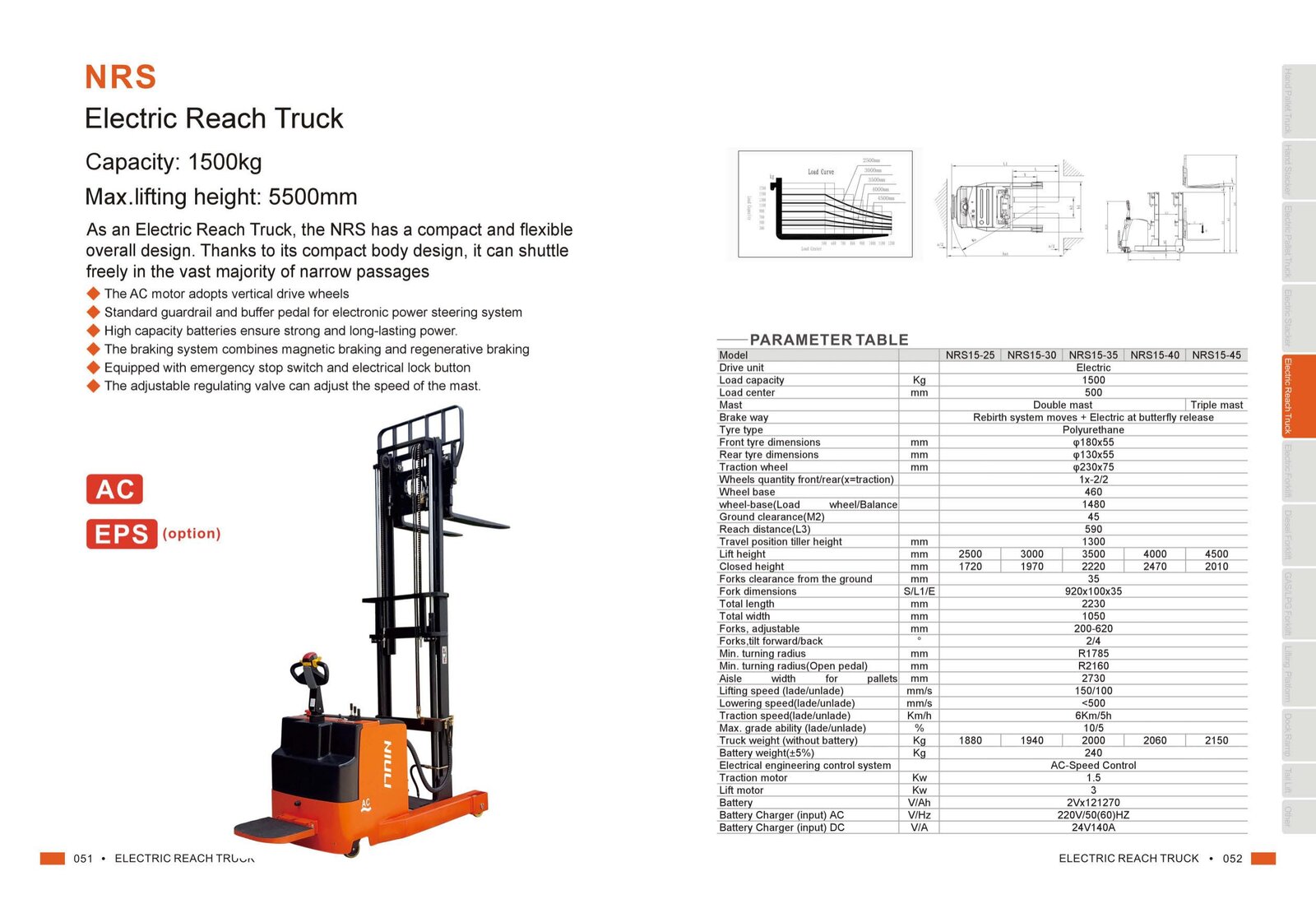

Specifications

Capacity3,307 lbs (1.5 ton)

Max Lift Height118.1 / 177.2 / 196.9 / 216.5 in (3000 / 4500 / 5000 / 5500 mm)

Fork Length45.3 in (1150 mm)

Fork Reach23.6 in (600 mm)

Minimum Aisle Width100.0 in (2540 mm)

Travel Speed (Loaded)5.6 mph (9.0 km/h)

Lift Speed (Loaded)11.8 in/s (300 mm/s)

Battery48V / 400Ah lead-acid or 200Ah Li-ion

Drive Motor4.0 kW AC

Lift Motor7.5 kW AC hydraulic

Self Weight5,512–6,173 lbs (2,500–2,800 kg)

Tilt3° forward / 5° backward

Side Shift+/- 3.9 in (100 mm)

Mast TypeTriple free-lift mast

Operator PositionStand-up cab with overhead guard

Models & Variants

Model	Capacity	Max Lift (in)	Self Weight (lbs)
NRS15-30	3,307 lbs (1.5 ton)	118.1	5512
NRS15-45	3,307 lbs (1.5 ton)	177.2	5732
NRS15-50	3,307 lbs (1.5 ton)	196.9	5842
NRS15-55	3,307 lbs (1.5 ton)	216.5	6173

Warranty Information

3-year structural warranty, 2-year electrical/motor warranty, 1-year battery warranty.

3 yr

Structural Warranty

2 yr

Electrical / Motor

1 yr

Battery Warranty

Quality Assurance

Every unit undergoes rigorous quality control before shipping from an ISO 9001-certified manufacturing facility.

ISO 9001 CertifiedCE Marked20+ Years ManufacturingGlobal Distribution

Equipment Financing Calculator

Estimate your monthly payments. Enter your down payment and expected interest rate below.

Model

Estimated Equipment Price

$30,800

Final pricing provided during the quote process. Actual price may vary.

Down Payment ($)

Interest Rate (% APR)

Your rate from your lender

Term (months)

* This calculator provides estimates only. Equipment pricing, interest rates, and terms are determined during the quote and credit approval process. Down payment required on all financed purchases. Contact us for a personalized quote.

Ready to Get Started?

Request a quote for the NRS Electric Reach Truck and our team will respond within 24 hours.

NRS Electric Reach Truck

Quality Assurance

Ready to Get Started?
