Manufactured byNIULI

Electric Stackers

CTQD Electric Stacker — Wide Leg

SKU: ES-CTQD

Wide-leg electric stacker with full electric drive for heavy-load stability.

6 models available

Capacity range: 2,205 lbs (1.0 ton) — 4,410 lbs (2.0 ton)

Ships direct from factory via Rhenus Logistics. Typical transit: 4–6 weeks to North American facilities.

Product Description

The CTQD features extra-wide straddle legs that comfortably span standard pallets, providing superior stability for heavy loads at height. The full-electric drive and lift system with proportional controls gives operators precise positioning capability. Ideal for stacking double-deep and handling heavy pallet loads in manufacturing.

Specifications

Capacity2,205 / 3,307 / 4,410 lbs (1.0 / 1.5 / 2.0 ton)

Min Fork Height3.5 in (90 mm)

Max Lift Height63.0 / 98.4 / 118.1 / 137.8 in

Fork Length45.3 in (1150 mm)

Fork Width (Outside)21.7 in (550 mm)

Straddle Width (Outside)45.3 in (1150 mm)

Straddle Width (Inside)30.7 in (780 mm)

Travel Speed (Loaded)3.1 mph (5.0 km/h)

Lift Speed (Loaded)4.3 in/s (110 mm/s)

Battery24V / 210Ah lead-acid

Drive Motor1.2 kW AC

Lift Motor2.2 kW hydraulic

Self Weight1,323–1,786 lbs (600–810 kg)

BrakingElectromagnetic regenerative

Models & Variants

Model	Capacity	Max Lift (in)	Self Weight (lbs)
CTQD10-30	2,205 lbs (1.0 ton)	118.1	1433
CTQD10-35	2,205 lbs (1.0 ton)	137.8	1499
CTQD15-25	3,307 lbs (1.5 ton)	98.4	1477
CTQD15-35	3,307 lbs (1.5 ton)	137.8	1653
CTQD20-16	4,410 lbs (2.0 ton)	63	1543
CTQD20-30	4,410 lbs (2.0 ton)	118.1	1786

Warranty Information

3-year structural warranty, 2-year electrical/motor warranty, 1-year battery warranty.

3 yr

Structural Warranty

2 yr

Electrical / Motor

1 yr

Battery Warranty

Quality Assurance

Every unit undergoes rigorous quality control before shipping from an ISO 9001-certified manufacturing facility.

ISO 9001 CertifiedCE Marked20+ Years ManufacturingGlobal Distribution

Equipment Financing Calculator

Estimate your monthly payments. Enter your down payment and expected interest rate below.

Model

Estimated Equipment Price

$7,300

Final pricing provided during the quote process. Actual price may vary.

Down Payment ($)

Interest Rate (% APR)

Your rate from your lender

Term (months)

* This calculator provides estimates only. Equipment pricing, interest rates, and terms are determined during the quote and credit approval process. Down payment required on all financed purchases. Contact us for a personalized quote.

Ready to Get Started?

Request a quote for the CTQD Electric Stacker — Wide Leg and our team will respond within 24 hours.

CTQD Electric Stacker — Wide Leg

Quality Assurance

Ready to Get Started?

Related Products

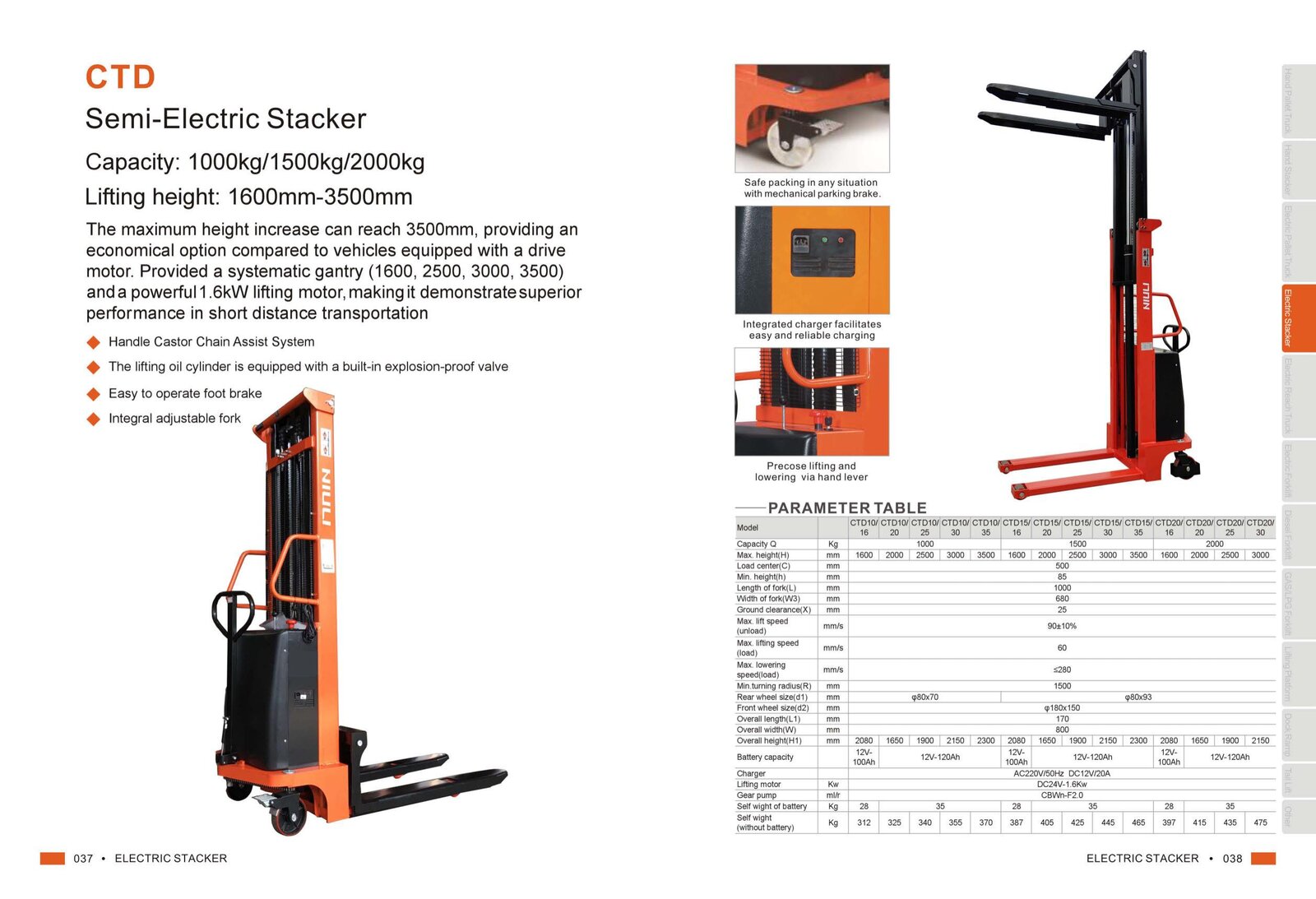

CTD Semi-Electric Stacker
